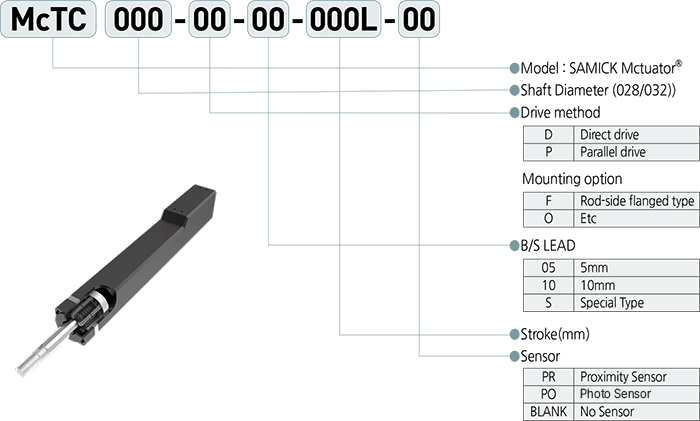

Contents	McTC028		McTC032
Maximum thrust (kgf)	200	200	400	400
Continuous thrust (kgf)	50	100	100	200
Maximum speed (mm/sec) (Rated/Maximum)	400 / 700	200 / 350	400 / 600	200 / 300
Max Stroke (mm)	~ 165		~ 200
Straightness (mm)	10㎛/100mm (Free Load State)		10㎛/100mm (Free Load State)
Repeatability (mm)	±0.01		±0.01
Recommended motor (KW)	0.4		0.75
Ball screw diameter × Lead (mm)	Ø12 × 10	Ø12×5	Ø15×10	Ø15×5
Applied Guide	McGKP-028		McGKP-032

Note 1. Continuous rated thrust is less than 100% of the motor load rate .
Note 2. Stroke is the distance from the origin to + OT.

Note 1) Servo motor and amplifier are for the customer's specifications.
Note 2) For the special specification, please contact to SAMICK

Technical inquiry sheet * Please print out the download file, fill in the necessary information, and contact us by FAX or E-mail.
